Termék részletek

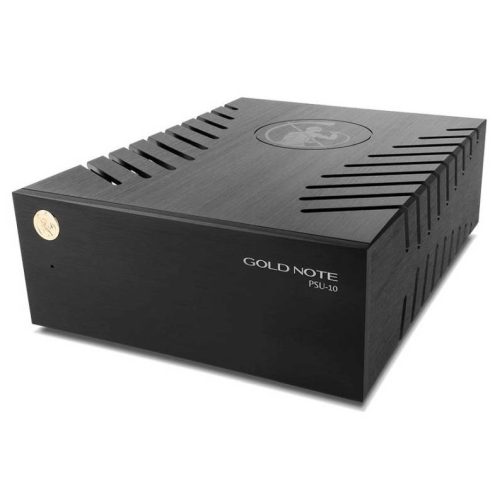

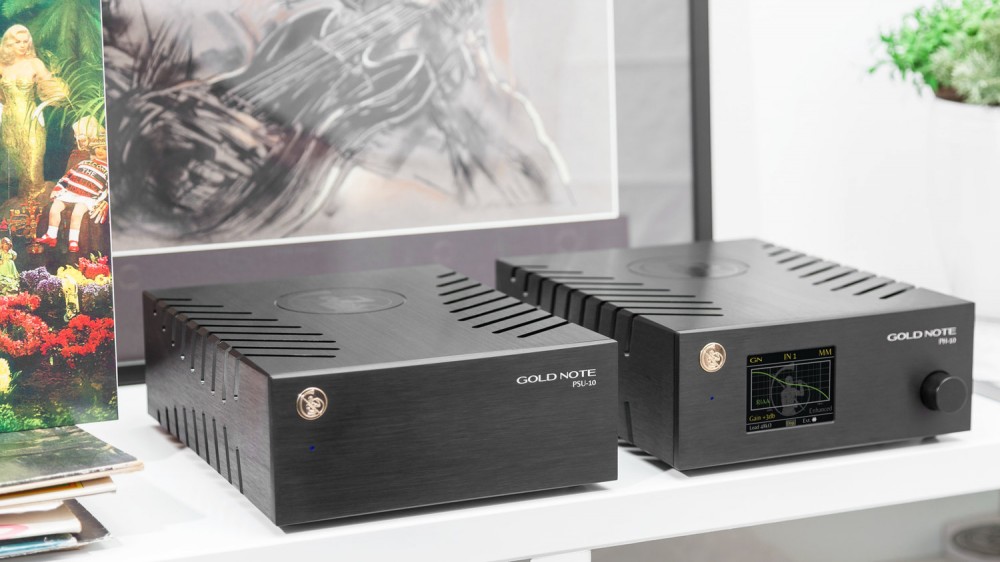

Gold Note PSU-10 phono előerősítő extra külső tápegység

Gold Note PSU-10 phono előerősítő extra külső tápegység
309 000 Ft
A vásárlás után járó pontok: 9 270 Ft

SUPER INDUCTIVE POWER SUPPLY


The PSU-10 is a super inductive power supply exclusively designed for the PH-10 phono stage.

Engineered with the best quality audio-grade components PSU-10 features a dual choke design powered by a double inductor driving the negative and positive high current stages and featuring and inductive filter on the analogue stage.


The Gold Note proprietary Dual Chokes Design perfectly filters the signal voltages in order to eliminate all the possible electrical noise coming from the AC power system.


The PSU-10 uses its massive power supply to shield the PH-10 phono stage from electro-magnetic interferences thus insulating it effectively from the AC power system.

The large, ultra-clean power enhances super low noise, greater dynamic, better resolution and finer details for a more realistic high-end audio performance and pure audio pleasure.

PSU-10 is able to help PH-10 extracting every single detail guaranteeing the best dynamic, resolution and realism music experience listening to vinyl.

The PSU-10 can deliver high quality power using four transformers three of which are dedicated exclusively to the pure power supply and with one separated transformer dedicated to the inductive filter.

  • Four rail audio grade power supply
    Four ultra low noise voltage regulator
    +12V, +5V for logic
    +/- 14V for analog with inductive noise remover
    Line regulation for all output 0,05 %/V
    Load regulation for all output 0,05 %Vu
    Line noise rejection >80dB
    Common mode noise rejection >80dB
    220mm L | 80mm A | 260mm
    3 Kg

    POWER
    Main supply: 100/120V & 220/240V (50/60Hzautomatic selection)
    Nominal power: 25W
    Dynamic power: >50W
    Stand by power: <1W
    Full power response time <2,5usec
